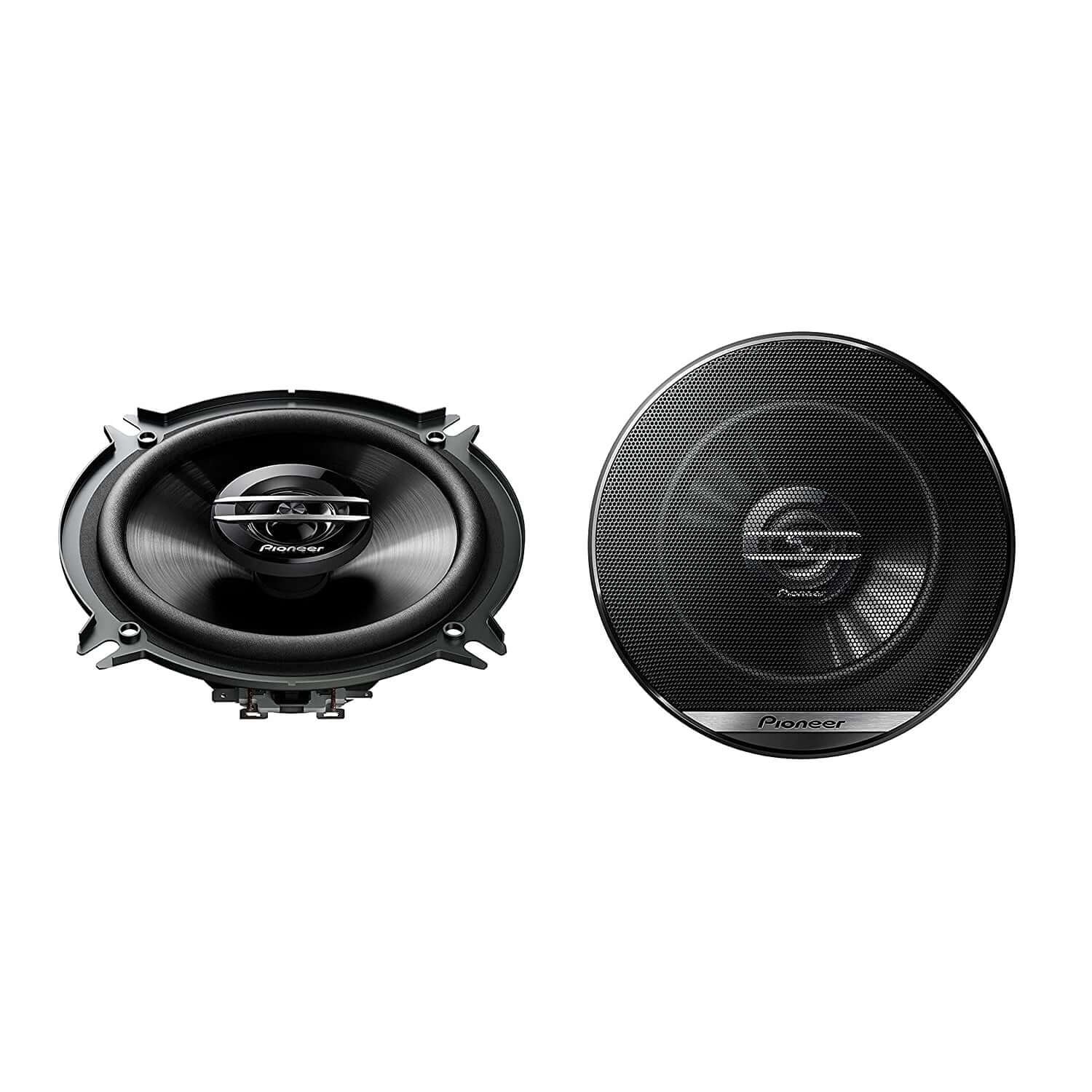

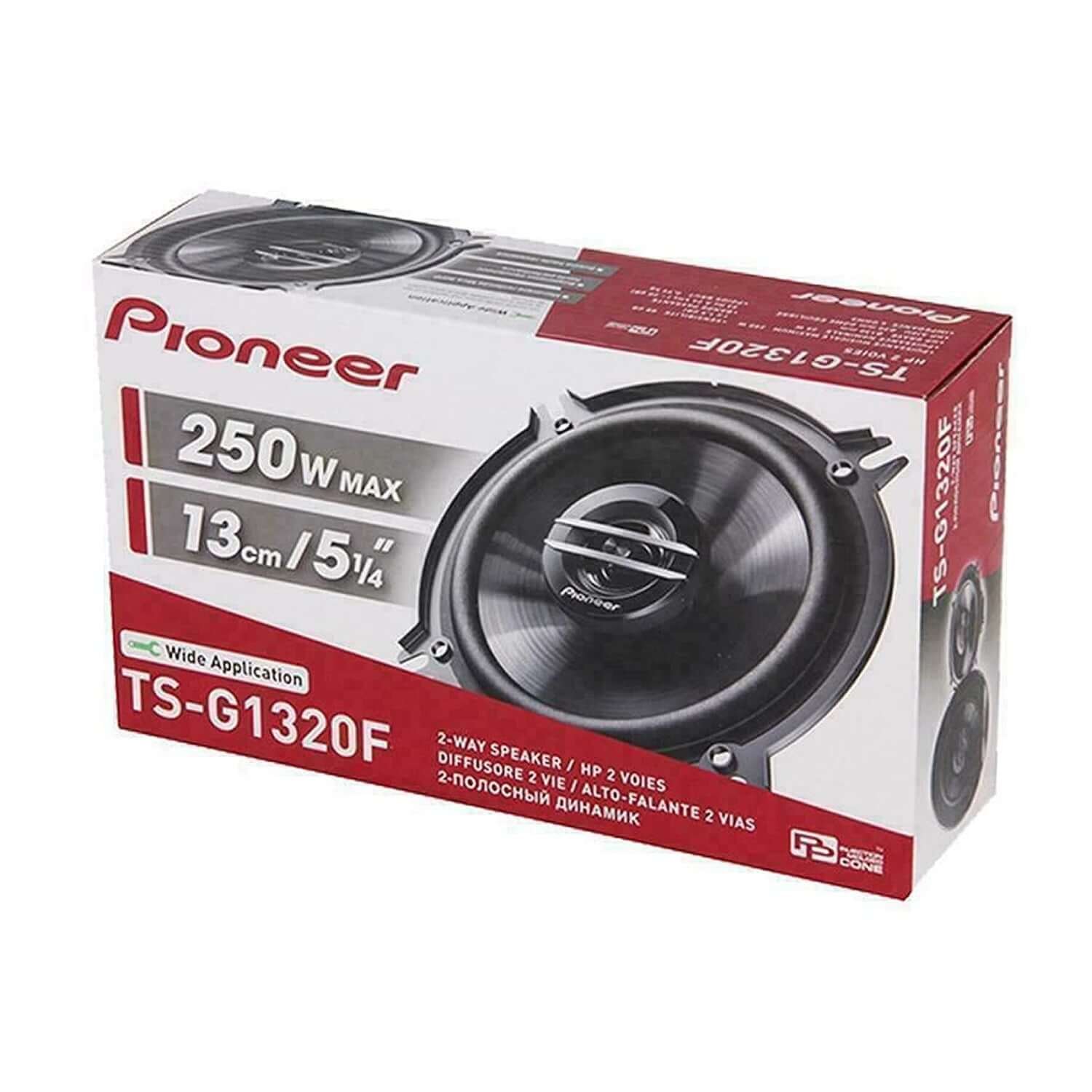

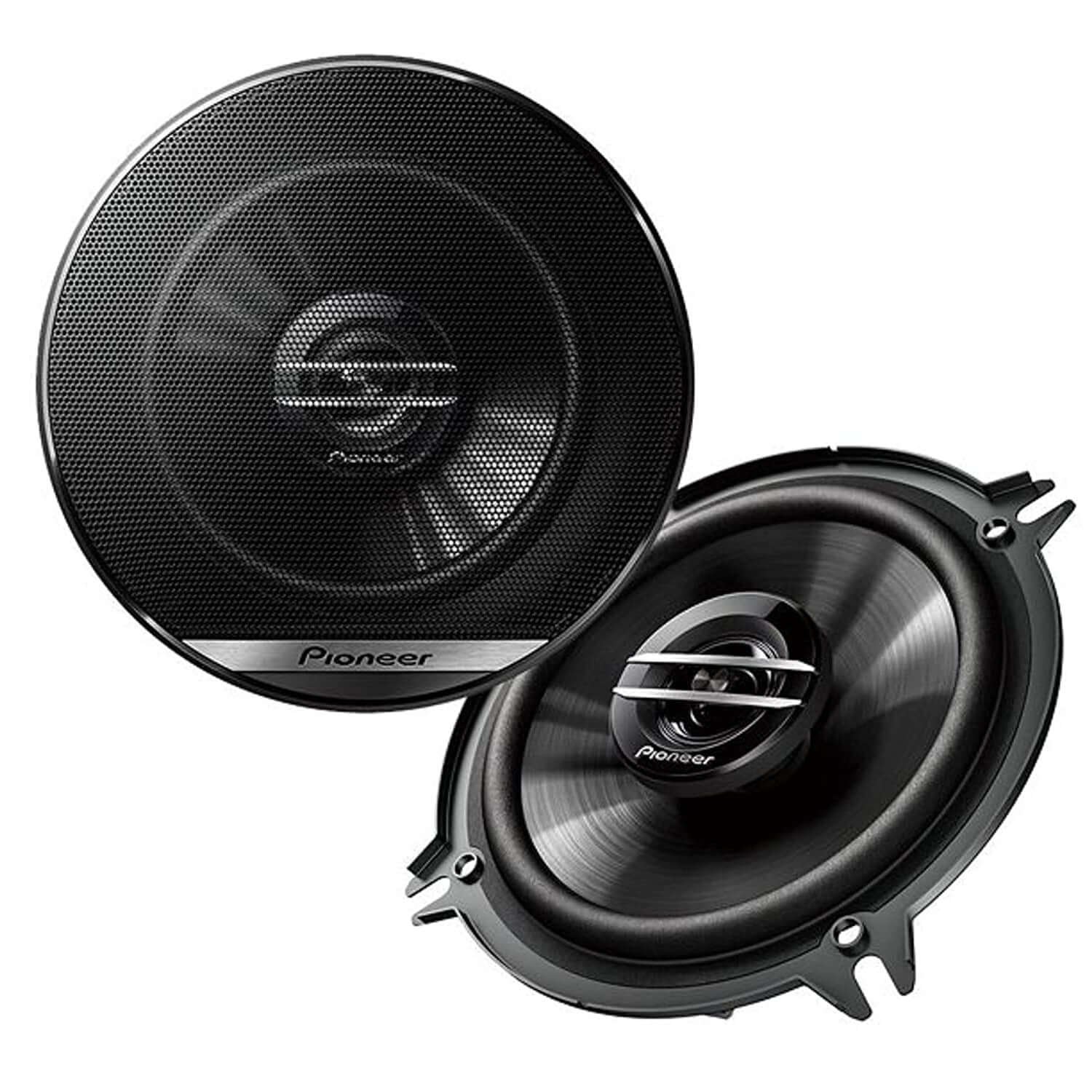

Pioneer TS-G1320F 13 cm Speakers

• The progressive Flex Suspension System supports the voice coil effectively by dampening the large cone vibration and enhancing the linearity of sound reproduction.
• Its soft part makes movement smooth and reproduces the clear sound and at excessive input, its hard part controls excessive vibration and prevents movement error.
• Its unique design with long stroke space, powerful motor, and long-stroke suspension help it in providing a powerful bass and strong sound.
• High rigidity PP Cone realize well sound balance and reproduce impactful bass & clear vocal.
• Efficiently engineered to handle up to 250W power input from a shallow design.
• A two-way component speaker system comprises two speakers: the tweeter and the woofer.
• By introducing more screw holes, this speaker can be installed in more cars

Specifications:

Brand: Pioneer

Type: Coaxial 2-WAY

Sound Pressure Level: 88 dB（±1.5ｄB）

Frequency Range: 33Hz 〜 24KHz（－20dB）

Max Wattage: 250W

Nominal Wattage: 35 W

Cone Size: 5-1/8″ (130mm), CONE

Impedance: 4 Ohms

Cone Material: IMPP Composite Cone

Colour: Black (HAIR LINE)

Surround Material: Rubber Coated Cloth Surround

Tweeter Type: Piezoelectric Balanced Dome

Diaphragm Material: PET

Tweeter Colour: Black

Mounting depth: 44.3 mm

Cutout hole: 106 mm

Dimensions (Dia x Depth): Φ 129 X 49.8 (mm)

Weight: 0.4kg (0lbs 14oz)

Warranty:

      1-Year Manufacturer Warranty against manufacturing defects only.
