Description

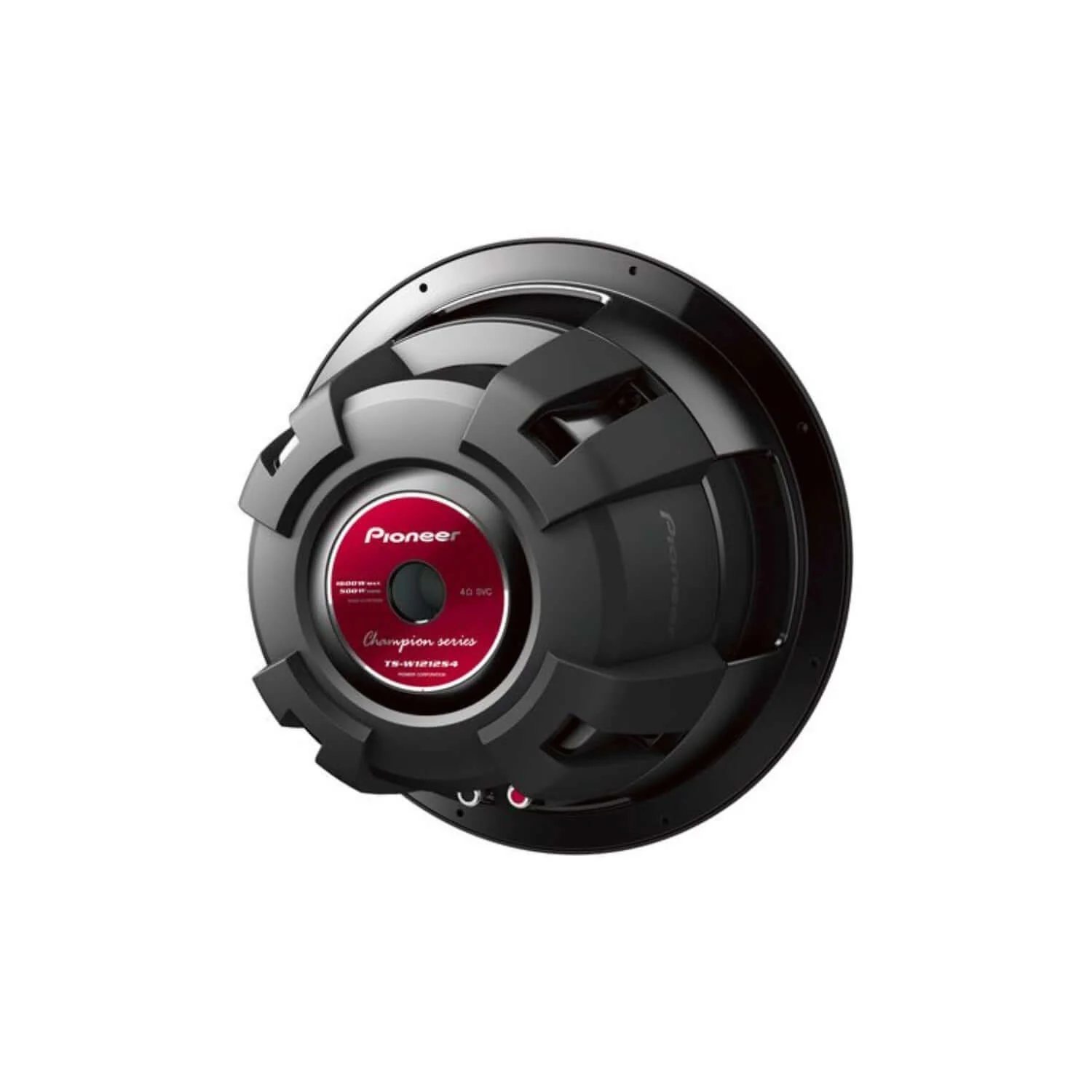

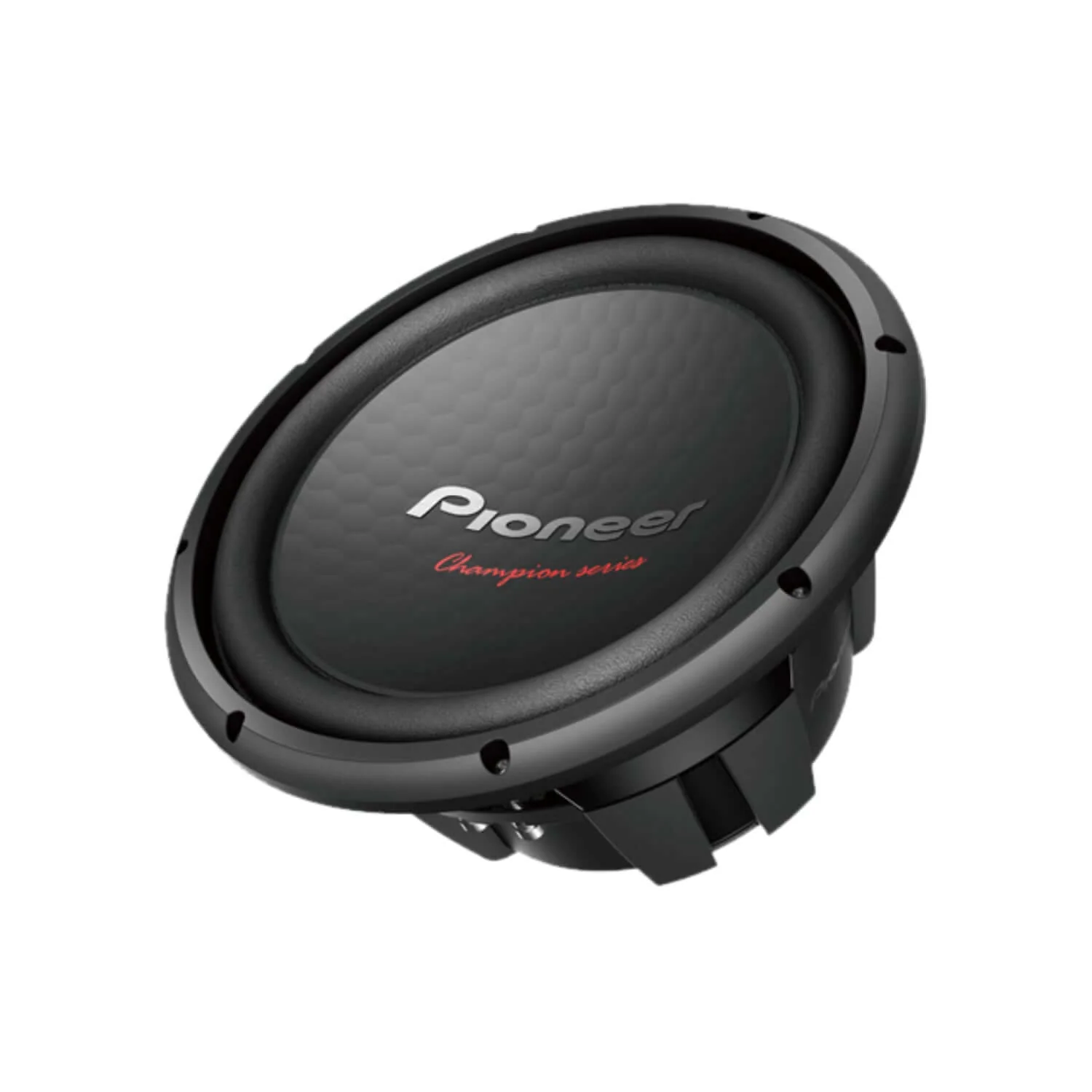

Pioneer TS-W1212S4 New Champion Series Subwoofer at 1600W Maximum Power

• High Power Handling and High Endurance:  Dual layer, fiber-reinforced elastic polymer surround. High heat resistance voice coil & Large magnet with high heat dissipation.

• Deeper & Louder Bass:  Rigid seamless structure cone and honeycomb design cap. Large magnet motor assembly.

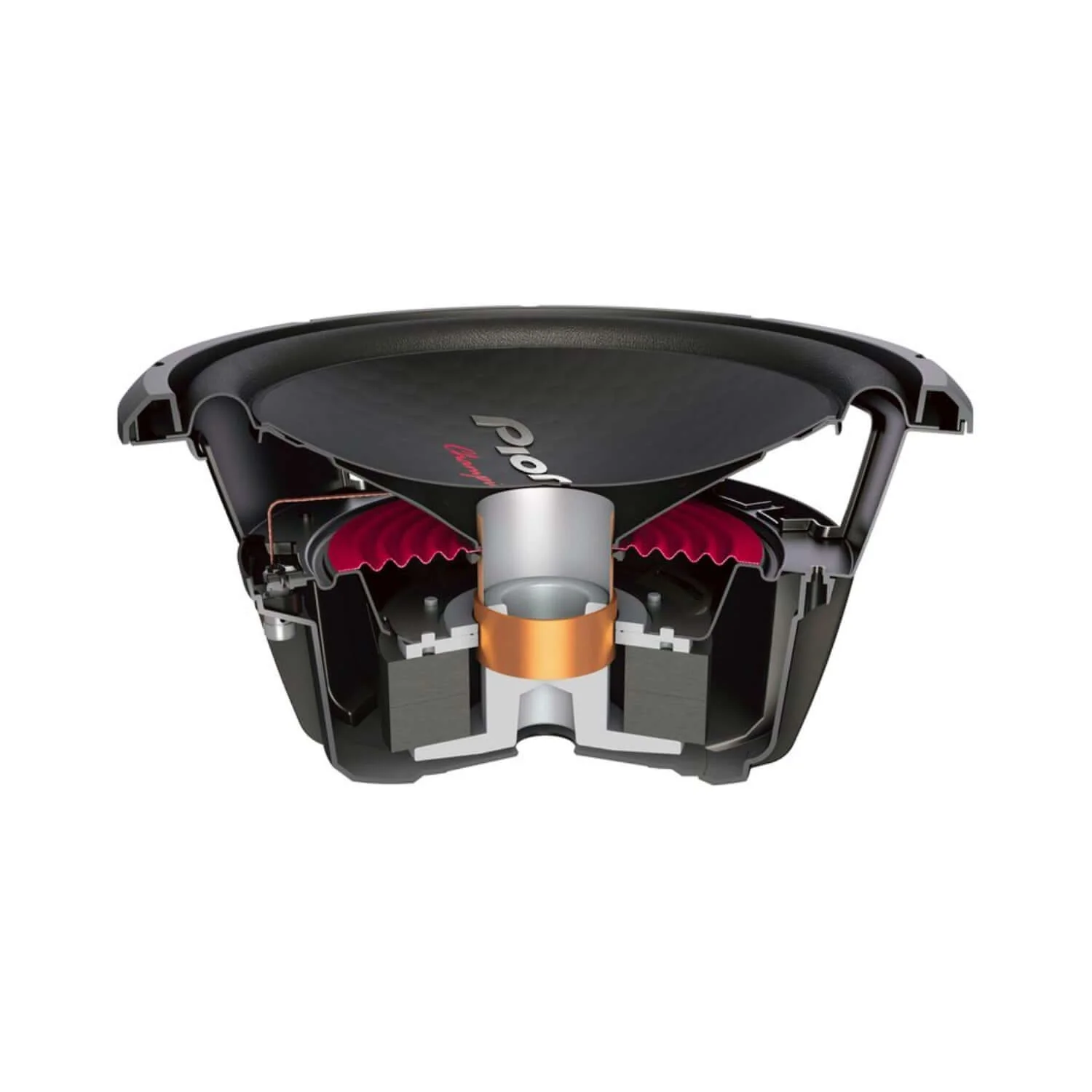

• Heavy and High Sturdy Structure:   Heavy magnetic circuit and an optimized basket to hold it. Firmly enclosed bottom basket for accurate cone motion.

• Light & Rigid Honeycomb Design Seamless Cone: Superior power transmission and stronger cone structure for louder sound.

• Hybrid Surround

• Firmly enclosed bottom basket.

• Large & Powerful Motor Assembly

Specifications:

Brand: Pioneer

Model:  TS-W1212S4

Sound Pressure Level: 92 dB (±1.5 dB) in car

Frequency Range: 20Hz ~ 1.6kHz (-20 dB)

Maximum Power: 1600W

Nominal Power: 500W

Impedance: 4 OHMs / Single Voice Coil

Type: Enclosure use

Cone Size: 12″(30cm) Cone

Terminal: Silver Push Terminal

Cone Material: Injection Molded PP

Color: Black

Surround Material: Dual Layer Fiber Reinforced Elastic Polymer Surround

Mounting Depth: 157.0mm (6 1/8 inch)

Cutout Hole: 283.0mm (11 1/8 inch)

Dimensions: Φ327 (mm) x 175 (mm)

Weight: 5.9 kg (208.09 oz)

Package including:

       1x Subwoofer

       Warranty Card

Warranty:

       1-Year Manufacturer Warranty against manufacturing defects only.
